250mm Large Diameter Cut-Off Wheel for Metal
The KELIEF 250mm Large Diameter Cut-Off Wheel is designed for efficient
cutting of steel pipes, steel bars, rebar, metal profiles, steel plates
and other industrial metal workpieces. Its 250mm diameter provides greater
cutting capacity, while the 2.8mm cutting profile supports controlled
material removal in compatible stationary cut-off machines and industrial
cutting equipment.
2.8mm Cutting Profile
25.4mm Bore
80 m/s Max. Speed
Fiber Reinforced
OEM Label Support
- Suitable for steel pipe, steel bar, rebar and metal profile cutting
- Fiber-reinforced resin-bonded structure for stable cutting performance
- 250mm diameter provides increased cutting capacity for larger workpieces
- 2.8mm profile supports controlled and efficient material removal
- Available in black, green, red and yellow product colors
- OEM label, inner box and export carton customization available
- Steel pipe and structural tube cutting
- Rebar, steel rod and metal bar processing
- Angle steel, channel steel and metal profile cutting
- Industrial fabrication and construction material preparation
- Wholesale distribution and private-label abrasive programs
- Stationary cut-off machine and industrial workshop applications
250mm Large Diameter Cut-Off Wheel for Industrial Metal Cutting
The KELIEF 250mm Large Diameter Cut-Off Wheel is a fiber-reinforced,
resin-bonded abrasive wheel developed for cutting steel pipes,
steel bars, rebar, structural profiles, steel plates and other
industrial metal workpieces. Its 250mm diameter provides increased
cutting capacity, while the 2.8mm profile supports controlled
material removal in compatible stationary cut-off machines and
industrial cutting equipment.
- 250 × 2.8 × 25.4mm large diameter cutting configuration
- Suitable for steel pipe, rebar, bars and structural profiles
- Fiber-reinforced resin-bonded abrasive structure
- Single-mesh and double-mesh configurations available
- Maximum operating speed of 80 m/s
- OEM product color, label and packaging support
Diameter
Thickness
Bore Size
Maximum Speed
Cutting Application

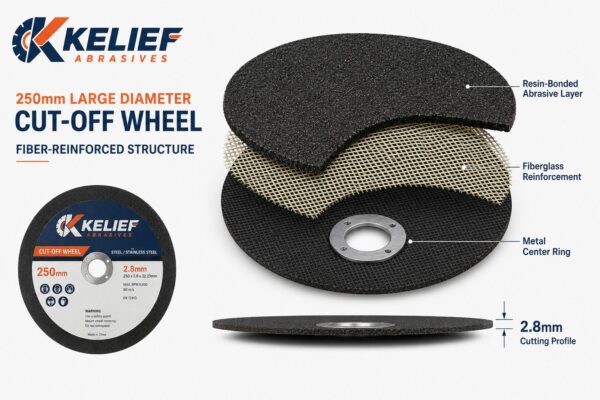

Fiber-Reinforced Resin-Bonded Construction
The 250mm cut-off wheel combines a resin-bonded abrasive body,
fiberglass reinforcement and a metal center ring. The abrasive
material performs the cutting action, while the reinforcement
supports the wheel structure during operation under the correct
machine, guard and operating conditions.
- Resin-bonded abrasive body for industrial metal cutting
- Fiberglass reinforcement integrated into the wheel structure
- 2.8mm cutting profile for controlled material removal
- 25.4mm center bore for compatible stationary equipment
- Metal center ring supports consistent machine installation

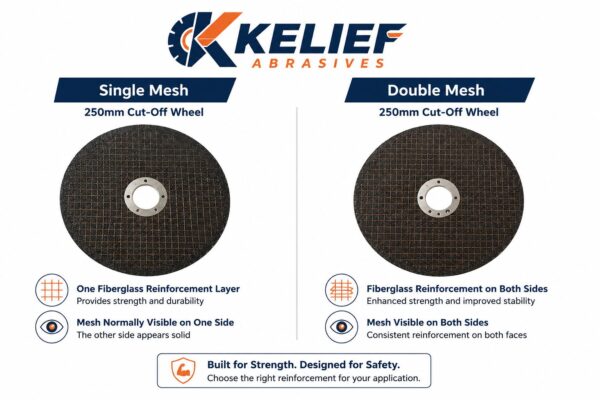

Single-Mesh and Double-Mesh Cut-Off Wheel Options
The KELIEF 250mm cut-off wheel can be supplied with different
fiberglass reinforcement configurations according to customer
requirements, target product positioning and market needs.
Uses one fiberglass reinforcement layer. Mesh texture is
normally visible on one side, while the opposite surface
has a smoother appearance.
Uses fiberglass reinforcement on both sides of the abrasive
body. Mesh texture can normally be observed on both sides
of the finished wheel.

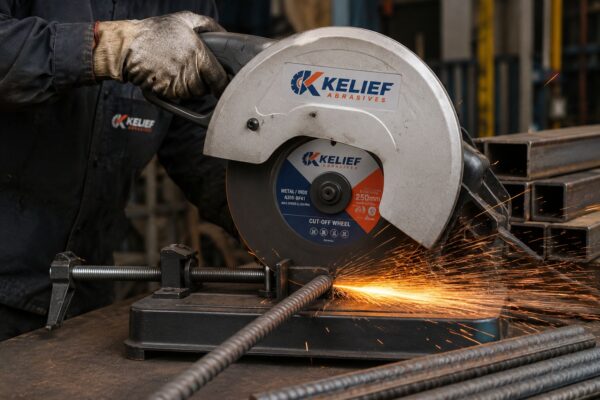

Designed for Steel Pipe, Rebar and Structural Metal Cutting
The 250mm diameter provides increased cutting capacity for steel
products and industrial metal workpieces used in fabrication,
construction, maintenance and material preparation.
Steel Pipe Cutting
Suitable for carbon steel pipe, structural tube and larger
metal sections used in fabrication and maintenance work.
Rebar and Profile Cutting
Designed for steel rods, rebar, angle steel, channels and
other structural metal profiles.
250mm Industrial Design
The 250mm diameter, 2.8mm thickness and 25.4mm bore provide
a practical configuration for compatible stationary equipment.

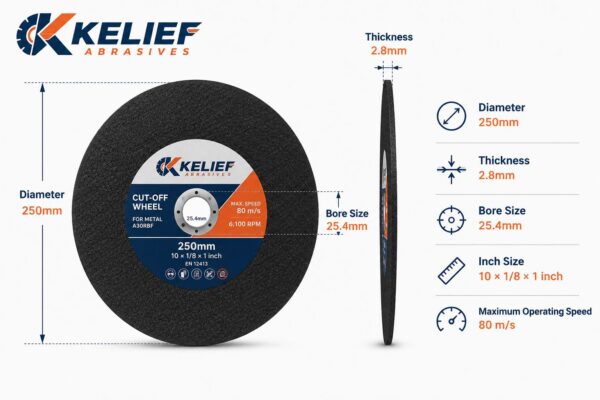

KELIEF 250mm Cut-Off Wheel Specifications
The following specifications apply to the current
250 × 2.8 × 25.4mm cut-off wheel configuration. Reinforcement,
product color, label and packaging can be adjusted according to
order requirements.
| Item | Specification |
|---|---|
| Brand | KELIEF |
| Product Name | 250mm Large Diameter Cut-Off Wheel |
| Product Category | Cutting Discs / Cut-Off Wheels |
| Metric Size | 250 × 2.8 × 25.4mm |
| Inch Size | 10 × 1/8 × 1 inch |
| Diameter | 250mm |
| Thickness | 2.8mm |
| Bore Size | 25.4mm |
| Maximum Operating Speed | 80 m/s |
| Reinforcement | Single Mesh / Double Mesh |
| Available Colors | Black / Green / Red / Yellow |
| Suitable Materials |
Stainless steel, carbon steel, steel pipes, steel plates, steel bars, rebar and structural metal profiles |
| Compatible Equipment |
Stationary cut-off machine, chop saw or compatible industrial cutting equipment |
| OEM Options | Custom color, label, inner box and export carton |
Custom 250mm Cut-Off Wheels for Your Brand
KELIEF supports OEM and private-label supply for abrasive tool
distributors, importers, hardware wholesalers and industrial
suppliers. Labels, product colors, inner boxes and export cartons
can be customized for different brands and sales markets.
- Custom product label and private-brand artwork
- Black, green, red and yellow product color options
- Single-mesh and double-mesh configurations
- Custom inner box and export carton design
- Market-oriented product and packaging presentation
- Wholesale, distribution and industrial supply support
Abrasive Product and OEM Support for Global Buyers
KELIEF supplies cutting discs, grinding wheels and related abrasive
products for tool brands, distributors, hardware wholesalers and
industrial buyers. Product and packaging configurations can be matched
with target applications and local market requirements.
Specifications and packaging can be standardized for repeat
wholesale and distribution orders.
Custom labels, product colors, inner boxes and export cartons
are available.
Large diameter wheels can be configured for steel pipe,
rebar and structural metal cutting.
Suitable for importers, industrial distributors, hardware
wholesalers and private-label brands.
Need 250mm Cut-Off Wheels for Your Market?
Tell us your required quantity, reinforcement type, product color,
label design and packaging requirements. KELIEF will evaluate the
suitable 250mm cut-off wheel configuration for your order.
