355mm Large Diameter Cut-Off Wheel for Metal
The KELIEF 355mm Large Diameter Cut-Off Wheel is designed for efficient
cutting of steel pipes, steel bars, rebar, structural profiles, steel
plates and other industrial metal workpieces. Its 355mm diameter provides
increased cutting depth and capacity, while the 2.8mm cutting profile
supports controlled material removal in compatible stationary cut-off
machines, chop saws and industrial cutting equipment.
2.8mm Cutting Profile
25.4mm Bore
80 m/s Max. Speed
Fiber Reinforced
OEM Label Support
- Suitable for steel pipe, steel bar, rebar and structural profile cutting
- Fiber-reinforced resin-bonded structure for stable cutting performance
- 355mm diameter provides greater cutting depth for larger metal workpieces
- 2.8mm cutting profile supports controlled and efficient material removal
- Available in black, green, red and yellow product colors
- OEM label, inner box and export carton customization available
- Carbon steel pipe and structural tube cutting
- Rebar, steel rod and metal bar processing
- Angle steel, channel steel and metal profile cutting
- Industrial fabrication and construction material preparation
- Stationary cut-off machine and workshop cutting applications
- Wholesale distribution and private-label abrasive programs
355mm Large Diameter Cut-Off Wheel for Industrial Metal Cutting
The KELIEF 355mm Large Diameter Cut-Off Wheel is a fiber-reinforced,
resin-bonded abrasive wheel developed for cutting steel pipes,
steel bars, rebar, structural profiles, steel plates and other
industrial metal workpieces. Its large 355mm diameter provides
increased cutting depth, while the 2.8mm profile supports controlled
material removal in compatible stationary cut-off machines,
chop saws and industrial cutting equipment.
- 355 × 2.8 × 25.4mm large diameter cutting configuration
- Suitable for steel pipe, rebar, bars and structural profiles
- Fiber-reinforced resin-bonded abrasive construction
- Single-mesh and double-mesh configurations available
- Maximum operating speed of 80 m/s
- OEM product color, label and packaging support
Diameter
Thickness
Bore Size
Maximum Speed
Cutting Application

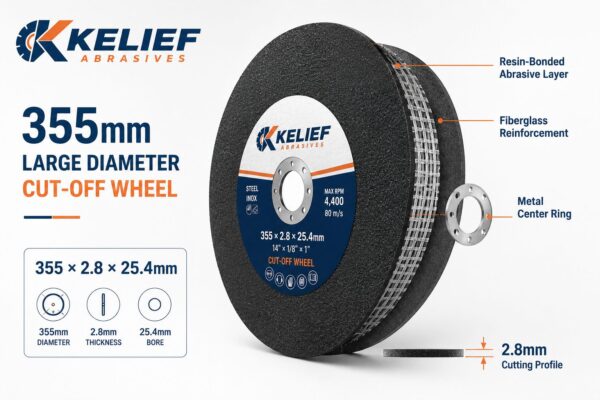

Fiber-Reinforced Resin-Bonded Construction
The 355mm cut-off wheel combines a resin-bonded abrasive body,
fiberglass reinforcement and a metal center ring. The abrasive
body performs the cutting action, while the fiberglass reinforcement
supports the wheel structure during operation under the correct
machine, guard and operating conditions.
- Resin-bonded abrasive body for industrial metal cutting
- Fiberglass reinforcement integrated into the wheel structure
- 2.8mm profile for controlled material removal
- 25.4mm center bore for compatible stationary equipment
- Metal center ring supports consistent machine installation

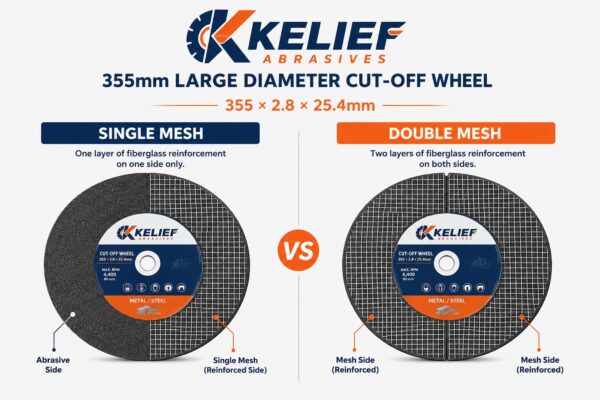

Single-Mesh and Double-Mesh Cut-Off Wheel Options
The KELIEF 355mm cut-off wheel can be supplied with different
fiberglass reinforcement configurations according to customer
requirements, product positioning and target market needs.
Uses one fiberglass reinforcement layer. Mesh texture is
normally visible on one side, while the opposite surface
has a smoother appearance.
Uses fiberglass reinforcement on both sides of the abrasive
body. Mesh texture can normally be observed on both sides
of the finished wheel.

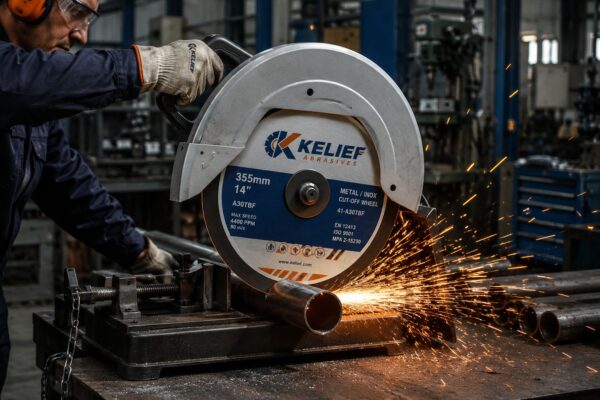

Designed for Steel Pipe, Rebar and Structural Metal Cutting
The 355mm diameter provides increased cutting depth and capacity for
steel products and industrial metal workpieces used in fabrication,
construction, maintenance and material preparation.
Steel Pipe Cutting
Suitable for carbon steel pipes, structural tubes and larger
metal sections used in fabrication and maintenance work.
Rebar and Profile Cutting
Designed for steel rods, rebar, angle steel, channels and
structural metal profiles used in construction and fabrication.
355mm Industrial Design
The 355mm diameter, 2.8mm thickness and 25.4mm bore provide
a practical configuration for compatible stationary machines.

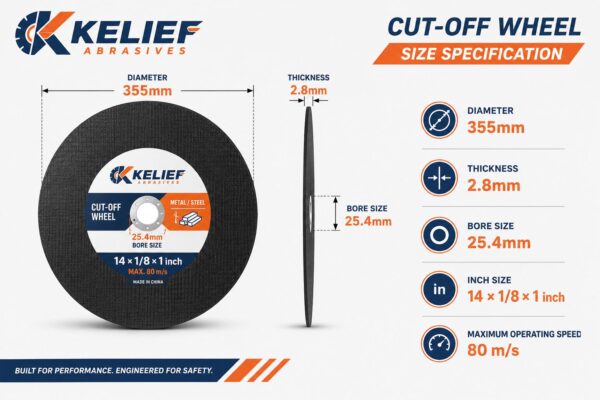

KELIEF 355mm Cut-Off Wheel Specifications
The following specifications apply to the current
355 × 2.8 × 25.4mm cut-off wheel configuration. Reinforcement,
product color, label and packaging can be adjusted according to
order requirements.
| Item | Specification |
|---|---|
| Brand | KELIEF |
| Product Name | 355mm Large Diameter Cut-Off Wheel |
| Product Category | Cutting Discs / Cut-Off Wheels |
| Metric Size | 355 × 2.8 × 25.4mm |
| Inch Size | 14 × 1/8 × 1 inch |
| Diameter | 355mm |
| Thickness | 2.8mm |
| Bore Size | 25.4mm |
| Maximum Operating Speed | 80 m/s |
| Reinforcement | Single Mesh / Double Mesh |
| Available Colors | Black / Green / Red / Yellow |
| Suitable Materials |
Stainless steel, carbon steel, steel pipes, steel plates, steel bars, rebar and structural metal profiles |
| Compatible Equipment |
Stationary cut-off machine, chop saw or compatible industrial cutting equipment |
| OEM Options | Custom color, label, inner box and export carton |
Custom 355mm Cut-Off Wheels for Your Brand
KELIEF supports OEM and private-label supply for abrasive tool
distributors, importers, hardware wholesalers and industrial
suppliers. Labels, product colors, inner boxes and export cartons
can be customized for different brands and sales markets.
- Custom product label and private-brand artwork
- Black, green, red and yellow product color options
- Single-mesh and double-mesh configurations
- Custom inner box and export carton design
- Market-oriented product and packaging presentation
- Wholesale, distribution and industrial supply support
Abrasive Product and OEM Support for Global Buyers
KELIEF supplies cutting discs, grinding wheels and related abrasive
products for tool brands, distributors, hardware wholesalers and
industrial buyers. Product and packaging configurations can be matched
with target applications and local market requirements.
Specifications and packaging can be standardized for repeat
wholesale and distribution orders.
Custom labels, product colors, inner boxes and export cartons
are available.
Large diameter wheels can be configured for steel pipe,
rebar and structural metal cutting.
Suitable for importers, industrial distributors, hardware
wholesalers and private-label brands.
Need 355mm Cut-Off Wheels for Your Market?
Tell us your required quantity, reinforcement type, product color,
label design and packaging requirements. KELIEF will evaluate the
suitable 355mm cut-off wheel configuration for your order.
