100mm T27 Grinding Wheel for Metal
The KELIEF 100mm T27 Grinding Wheel is designed for metal surface grinding,
weld seam removal, edge beveling, burr removal and surface defect repair.
Its depressed-center T27 shape provides practical tool clearance, while the
6mm grinding profile supports stable material removal in compatible angle
grinder applications.
6mm Grinding Profile
16mm Bore
T27 Depressed Center
80–100 m/s
OEM Label Support
- Suitable for metal surface grinding and material removal
- T27 depressed-center shape provides practical grinding clearance
- 6mm profile supports stable grinding of welds, edges and metal surfaces
- Fiber-reinforced resin-bonded structure for industrial grinding applications
- Available in black, green and red product colors
- OEM label, inner box and export carton customization available
- Metal surface grinding and preparation
- Weld seam and welding slag removal
- Edge beveling and chamfering
- Burr and flash removal
- Metal surface defect repair
- Industrial distribution and private-label abrasive programs
100mm Depressed Center Grinding Wheel for Metal
The KELIEF 100mm T27 Grinding Wheel is a fiber-reinforced,
resin-bonded abrasive wheel developed for metal surface grinding,
weld seam removal, edge beveling, burr removal and metal surface
repair. Its 100mm diameter provides flexible handling, while the
6mm grinding profile supports stable material removal in compatible
angle grinder applications.
- 100 × 6 × 16mm grinding wheel configuration
- T27 depressed-center wheel shape
- Suitable for general metal surface grinding
- Designed for weld removal, beveling and burr removal
- Operating line speed of 80–100 m/s
- OEM product color, label and packaging support
Diameter
Thickness
Bore Size
Wheel Type
Operating Speed

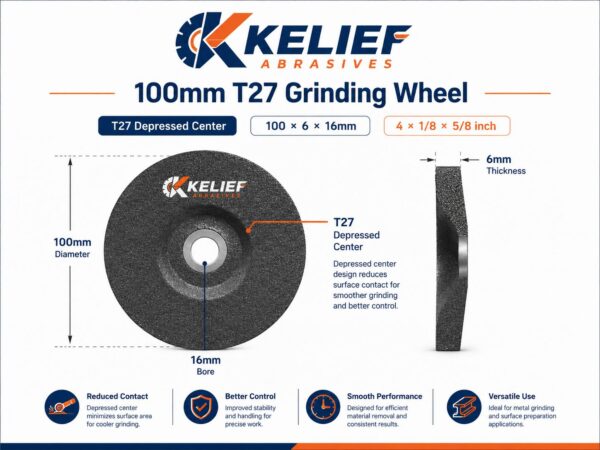

T27 Depressed-Center Grinding Wheel
The T27 configuration features a depressed center that provides
clearance between the wheel mounting area and the workpiece.
This structure is commonly used for flat surface grinding, weld
grinding, edge preparation and general metalworking applications.
- Depressed center provides practical machine clearance
- Suitable for surface and edge grinding
- 100mm compact diameter for flexible handling
- 6mm grinding profile for controlled material removal
- 16mm bore for compatible angle grinder installation

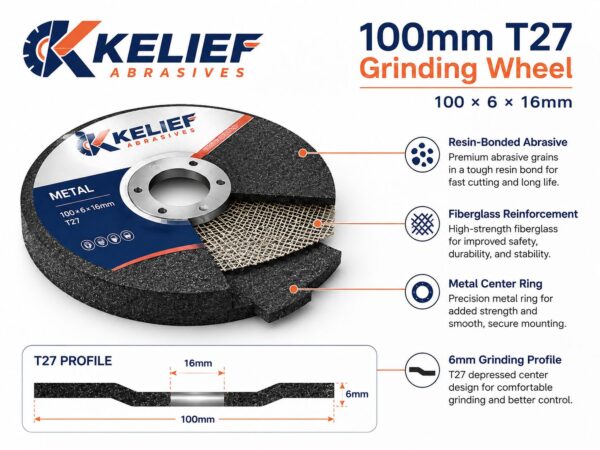

Fiber-Reinforced Resin-Bonded Construction
The grinding wheel combines a resin-bonded abrasive body,
fiberglass reinforcement and a metal center ring. The abrasive
material performs the grinding action, while the reinforced
structure supports the wheel during use under appropriate
machine and operating conditions.
- Resin-bonded abrasive grinding body
- Fiberglass reinforcement integrated into the wheel
- Metal center ring for consistent mounting
- 6mm grinding profile for metal material removal
- Designed for compatible guarded angle grinders

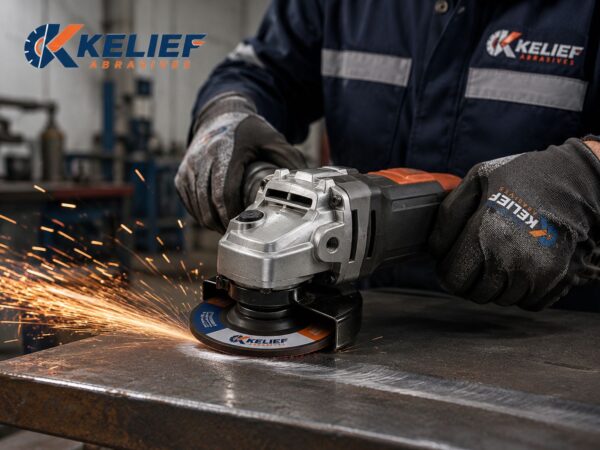

Designed for Surface Grinding, Weld Removal and Edge Preparation
The 100mm T27 grinding wheel can be used for common metal fabrication,
maintenance and repair tasks involving welds, edges, burrs and uneven
metal surfaces.
Metal Surface Grinding
Suitable for removing uneven areas, surface defects and excess
material from steel plates, profiles and fabricated components.
Weld and Slag Removal
Designed for grinding weld seams, removing welding slag and
preparing welded metal parts for further processing.
Compact T27 Configuration
The 100mm diameter, 6mm grinding profile and 16mm bore provide
a compact configuration for compatible angle grinders.

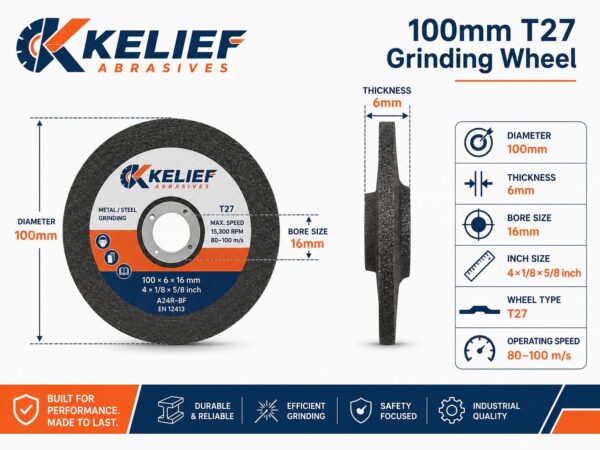

KELIEF 100mm T27 Grinding Wheel Specifications
The following specifications apply to the current 100 × 6 × 16mm
grinding wheel. Product color, label and packaging can be adjusted
according to qualified order requirements.
| Item | Specification |
|---|---|
| Brand | KELIEF |
| Product Name | 100mm T27 Grinding Wheel |
| Product Category | Grinding Wheels |
| Wheel Type | T27 Depressed Center |
| Metric Size | 100 × 6 × 16mm |
| Inch Size | 4 × 1/8 × 5/8 inch |
| Diameter | 100mm |
| Thickness | 6mm |
| Bore Size | 16mm |
| Operating Speed | 80–100 m/s |
| Structure | Fiber-Reinforced Resin-Bonded Abrasive |
| Available Colors | Black / Green / Red |
| Typical Applications |
Metal surface grinding, edge beveling, weld removal, burr removal and surface defect repair |
| Compatible Equipment | Compatible angle grinder with protective guard |
| OEM Options | Custom color, product label, inner box and export carton |
Custom 100mm Grinding Wheels for Your Brand
KELIEF supports OEM and private-label supply for abrasive tool
distributors, hardware wholesalers, importers and industrial
suppliers. Product colors, labels, inner boxes and export cartons
can be customized for different brands and sales markets.
- Custom product label and private-brand artwork
- Black, green and red product color options
- Custom inner box and export carton design
- Market-oriented packaging configuration
- Wholesale and industrial distribution support
- Private-label abrasive product programs
Grinding Wheel and OEM Support for Global Buyers
KELIEF supplies cutting discs, grinding wheels and abrasive product
solutions for tool brands, distributors, hardware wholesalers and
industrial buyers. Product specifications and packaging can be matched
with different applications and target markets.
Product specifications and packaging can be standardized for
repeat wholesale and distribution orders.
Custom labels, colors, inner boxes and export cartons are available.
Grinding wheel configurations can be matched with common metal
fabrication and surface preparation requirements.
Suitable for importers, hardware wholesalers, industrial
distributors and private-label tool brands.
Need 100mm T27 Grinding Wheels for Your Market?
Tell us your required quantity, product color, label design and
packaging requirements. KELIEF will evaluate the suitable grinding
wheel and OEM configuration for your order.
