230mm T27 Grinding Wheel for Metal
The KELIEF 230mm T27 Grinding Wheel is designed for metal surface grinding,
weld seam removal, edge beveling, burr removal and surface defect repair.
Its T27 depressed-center configuration provides practical tool clearance,
while the 6mm grinding profile and large 230mm diameter support stable
material removal in compatible 230mm angle grinder applications.
6mm Grinding Profile
22mm Bore
T27 Depressed Center
80–100 m/s
OEM Label Support
- Suitable for metal surface grinding and general material removal
- T27 depressed-center design provides practical grinding clearance
- 6mm grinding profile supports stable weld and edge grinding
- 230mm diameter provides a large working area for industrial fabrication
- Available in black, green and red product colors
- OEM label, inner box and export carton customization available
- Large metal surface grinding and preparation
- Weld seam and welding slag removal
- Edge beveling and chamfering
- Burr and metal flash removal
- Metal surface defect repair
- Industrial distribution and private-label abrasive programs
230mm Depressed Center Grinding Wheel for Metal
The KELIEF 230mm T27 Grinding Wheel is a fiber-reinforced,
resin-bonded abrasive wheel developed for metal surface grinding,
weld seam removal, edge beveling, burr removal and metal surface
repair. Its large 230mm diameter provides an increased grinding
area, while the 6mm profile supports stable material removal in
industrial fabrication, maintenance and repair applications.
- 230 × 6 × 22mm grinding wheel configuration
- T27 depressed-center wheel design
- Suitable for metal surface and edge grinding
- Designed for weld removal and burr grinding
- Operating line speed of 80–100 m/s
- OEM product color, label and packaging support
Diameter
Thickness
Bore Size
Wheel Type
Operating Speed

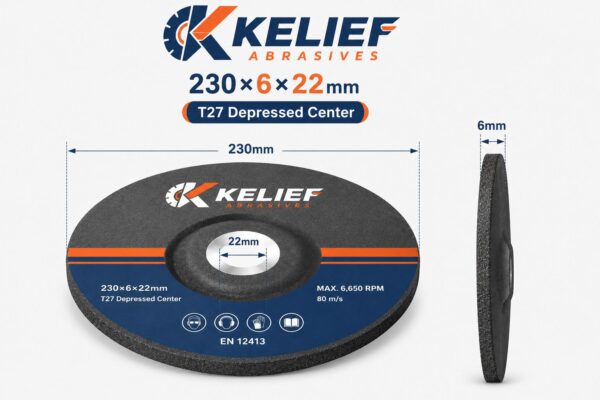

T27 Depressed Center with a 6mm Grinding Profile
The T27 configuration features a depressed center that provides
clearance between the wheel mounting area and the workpiece.
The 6mm grinding profile is designed for stable material removal
during surface grinding, weld removal, edge preparation and
general industrial metalworking.
- Depressed center provides practical machine clearance
- Suitable for surface, weld and edge grinding
- 230mm diameter provides a large working area
- 6mm profile supports stable material removal
- 22mm bore for compatible angle grinder installation

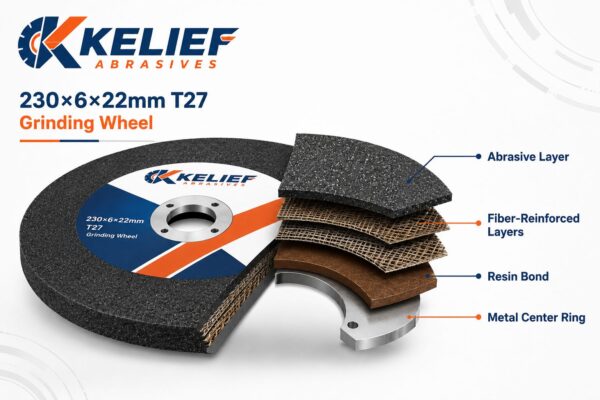

Fiber-Reinforced Resin-Bonded Construction
The grinding wheel combines a resin-bonded abrasive body,
fiberglass reinforcement and a metal center ring. The abrasive
material performs the grinding action, while the reinforced
construction supports the wheel during use with the correct
machine, protective guard and operating conditions.
- Resin-bonded abrasive grinding body
- Fiberglass reinforcement integrated into the wheel
- Metal center ring for consistent mounting
- 6mm grinding profile for metal material removal
- Designed for compatible guarded angle grinders
Designed for Surface Grinding, Weld Removal and Edge Preparation
The 230mm T27 grinding wheel is suitable for industrial fabrication,
maintenance and repair tasks involving large welded joints, metal
edges, burrs, slag and uneven metal surfaces.
Large Surface Grinding
Suitable for removing uneven areas, surface defects and excess
material from steel plates, structural profiles and fabricated
metal components.
Weld and Slag Removal
Designed for grinding weld seams, removing welding slag and
preparing large welded components for subsequent processing.
230mm T27 Configuration
The 230mm diameter, 6mm grinding profile and 22mm bore provide
a large grinding configuration for compatible angle grinders.

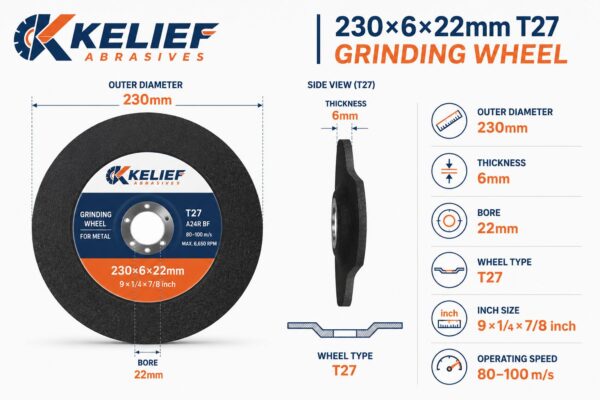

KELIEF 230mm T27 Grinding Wheel Specifications
The following specifications apply to the current 230 × 6 × 22mm
grinding wheel. Product color, label and packaging can be adjusted
according to order requirements.
| Item | Specification |
|---|---|
| Brand | KELIEF |
| Product Name | 230mm T27 Grinding Wheel |
| Product Category | Grinding Wheels |
| Wheel Type | T27 Depressed Center |
| Metric Size | 230 × 6 × 22mm |
| Inch Size | 9 × 1/4 × 7/8 inch |
| Diameter | 230mm |
| Thickness | 6mm |
| Bore Size | 22mm |
| Operating Speed | 80–100 m/s |
| Structure | Fiber-Reinforced Resin-Bonded Abrasive |
| Available Colors | Black / Green / Red |
| Typical Applications |
Surface grinding, weld removal, edge beveling, burr removal and surface defect repair |
| Compatible Equipment | Compatible 230mm angle grinder with protective guard |
| OEM Options | Custom color, product label, inner box and export carton |
Custom 230mm Grinding Wheels for Your Brand
KELIEF supports OEM and private-label supply for abrasive tool
distributors, hardware wholesalers, importers and industrial
suppliers. Product colors, labels, inner boxes and export cartons
can be customized for different brands and sales markets.
- Custom product label and private-brand artwork
- Black, green and red product color options
- Custom inner box and export carton design
- Market-oriented packaging configuration
- Wholesale and industrial distribution support
- Private-label abrasive product programs
Grinding Wheel and OEM Support for Global Buyers
KELIEF supplies cutting discs, grinding wheels and abrasive products
for tool brands, distributors, hardware wholesalers and industrial
buyers. Product specifications and packaging can be matched with
different applications and target markets.
Product specifications and packaging can be standardized for
repeat wholesale and distribution orders.
Custom labels, colors, inner boxes and export cartons are available.
Grinding wheel configurations can be matched with metal surface,
weld and edge preparation requirements.
Suitable for importers, hardware wholesalers, industrial
distributors and private-label tool brands.
Need 230mm T27 Grinding Wheels for Your Market?
Tell us your required quantity, product color, label design and
packaging requirements. KELIEF will evaluate the suitable grinding
wheel and OEM configuration for your order.
