180mm Thin Cutting Disc for Stainless Steel & Metal
The KELIEF 180mm Thin Cutting Disc is designed for fast, controlled and
efficient cutting of stainless steel, steel pipes, steel plates, steel bars,
rebar and general metal profiles. Its 180mm diameter provides deeper cutting
reach, while the 1.6mm thin profile supports efficient material removal in
compatible 7-inch angle grinder and portable metal cutting applications.
1.6mm Thin Profile
22mm Bore
80 m/s Max. Speed
Single / Double Mesh
OEM Label Support
- Suitable for stainless steel, steel pipe, steel plate and profile cutting
- Fiber-reinforced resin structure for stable cutting performance
- Thin 1.6mm profile for efficient and controlled material removal
- 180mm diameter provides deeper cutting reach for larger workpieces
- Available in black, green, red and yellow product colors
- OEM label, inner box and export carton customization available
- Stainless steel pipe, sheet and profile cutting
- Carbon steel tube and structural metal cutting
- Steel plate, steel bars and rebar processing
- Metal fabrication, construction and repair work
- Wholesale distribution and private-label abrasive programs
- Hardware, tool and industrial supply markets
180mm Thin Cutting Disc for Stainless Steel and Metal
The KELIEF 180mm Thin Cutting Disc is a fiber-reinforced,
resin-bonded abrasive wheel developed for cutting stainless steel,
steel pipes, steel plates, steel bars, rebar and general metal
profiles. Its 1.6mm thin profile supports efficient material removal,
while the larger 180mm diameter provides deeper cutting reach for
compatible 7-inch angle grinders and portable cutting equipment.
- 180 × 1.6 × 22mm thin cutting disc configuration
- Suitable for stainless steel and general metal cutting
- Fiber-reinforced resin-bonded abrasive structure
- Single-mesh and double-mesh options available
- Maximum operating speed of 80 m/s
- OEM product color, label and packaging support
Diameter
Thickness
Bore Size
Maximum Speed
Mesh Options

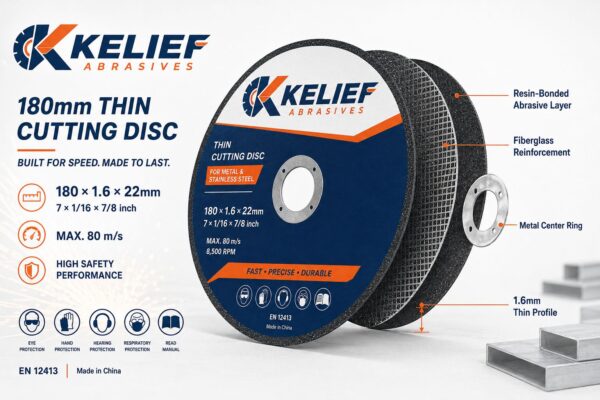

Fiber-Reinforced Resin-Bonded Structure
The cutting wheel combines resin-bonded abrasive material,
fiberglass reinforcement and a metal center ring. The abrasive
body performs the cutting action, while the reinforcement supports
wheel stability during use with the correct machine, guard and
operating conditions.
- Resin-bonded abrasive body for metal cutting applications
- Fiberglass reinforcement integrated into the wheel structure
- Thin 1.6mm profile for controlled material removal
- Metal center ring for consistent machine mounting
- Designed for compatible 180mm portable cutting equipment

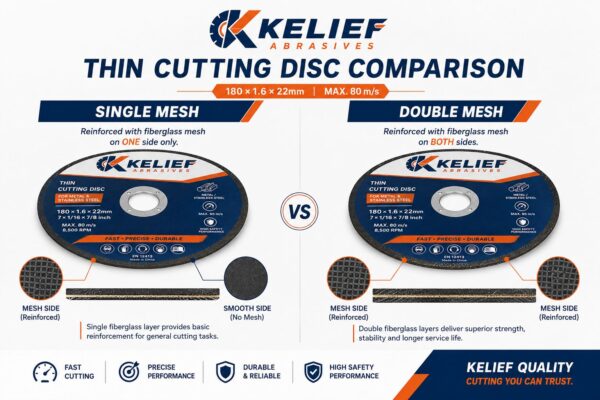

Single-Mesh and Double-Mesh Cutting Disc Options
The KELIEF 180mm cutting disc can be supplied with single-mesh
or double-mesh reinforcement according to customer requirements,
product positioning and target market needs.
The single-mesh configuration uses one fiberglass reinforcement
layer. Mesh texture is normally visible on one side, while the
opposite side has a smoother appearance.
The double-mesh configuration uses fiberglass reinforcement on
both sides of the abrasive body. Mesh texture can normally be
observed on both sides of the finished cutting wheel.
Deeper Cutting Reach for Pipe, Steel and Metal Profiles
The larger 180mm diameter provides deeper cutting reach for larger
steel pipes, profiles and metal workpieces used in fabrication,
construction, maintenance and industrial processing.
Metal Pipe Cutting
Suitable for carbon steel pipes, square tubes, structural tubing
and metal profiles requiring increased cutting depth.
Stainless Steel Cutting
Suitable for stainless steel pipes, sheets, profiles and
fabricated stainless steel components.
180mm Thin Design
The 180mm diameter, 1.6mm thickness and 22mm bore provide
deeper reach while retaining a relatively thin cutting profile.

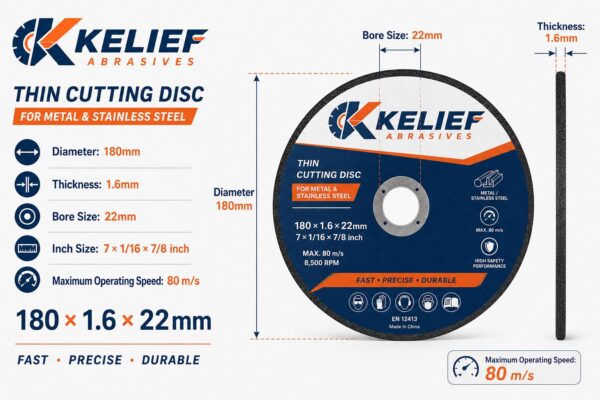

KELIEF 180mm Cutting Disc Specifications
The following specifications apply to the current 180 × 1.6 × 22mm
cutting disc configuration. Reinforcement, product color, label and
packaging can be adjusted according to order requirements.
| Item | Specification |
|---|---|
| Brand | KELIEF |
| Product Name | 180mm Thin Cutting Disc |
| Product Category | Cutting Discs / Cut-off Wheels |
| Metric Size | 180 × 1.6 × 22mm |
| Inch Size | 7 × 1/16 × 7/8 inch |
| Diameter | 180mm |
| Thickness | 1.6mm |
| Bore Size | 22mm |
| Maximum Operating Speed | 80 m/s |
| Reinforcement | Single Mesh / Double Mesh |
| Available Colors | Black / Green / Red / Yellow |
| Suitable Materials |
Stainless steel, carbon steel, steel pipes, steel plates, steel bars, rebar and general metal profiles |
| Compatible Equipment | Compatible 7-inch angle grinder or portable cutting tool |
| OEM Options | Custom product color, label, inner box and export carton |
Custom 180mm Cutting Discs for Your Brand
KELIEF supports OEM and private-label supply for abrasive tool
distributors, importers, hardware wholesalers and industrial
suppliers. Labels, product colors, inner boxes and export cartons
can be customized for different brands and sales markets.
- Custom product label and private-brand artwork
- Black, green, red and yellow product color options
- Single-mesh and double-mesh configurations
- Custom inner box and export carton design
- Market-oriented product and packaging presentation
- Wholesale, distribution and industrial supply support
Abrasive Product and OEM Support for Global Buyers
KELIEF supplies cutting discs, grinding wheels and related abrasive
products for tool brands, distributors, hardware wholesalers and
industrial buyers. Product and packaging configurations can be matched
with target applications and local market requirements.
Specifications and packaging can be standardized for repeat
wholesale and distribution orders.
Custom labels, product colors, inner boxes and export cartons
are available.
Cutting disc configurations can be matched with stainless steel
and general metal cutting requirements.
Suitable for importers, hardware wholesalers, industrial
distributors and private-label brands.
Need 180mm Cutting Discs for Your Market?
Tell us your required quantity, reinforcement type, product color,
label design and packaging requirements. KELIEF will evaluate the
suitable 180mm cutting disc configuration for your order.
